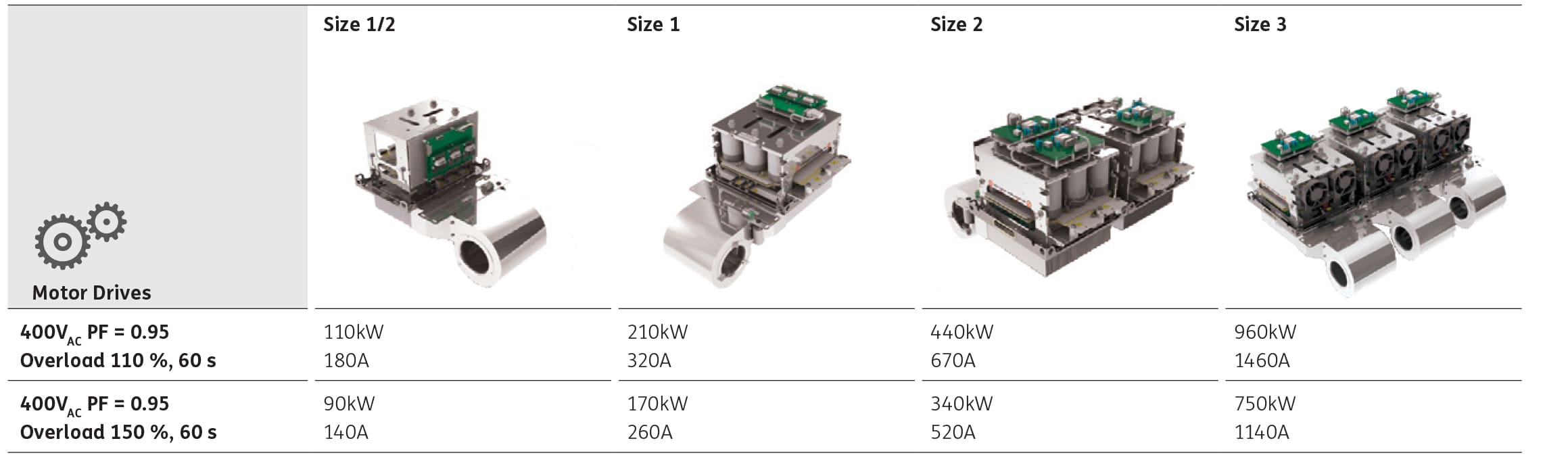

AC drive power converters

• 3-phase diode/thyristor rectifier and 3-phase IGBT inverter
• Brake chopper optional

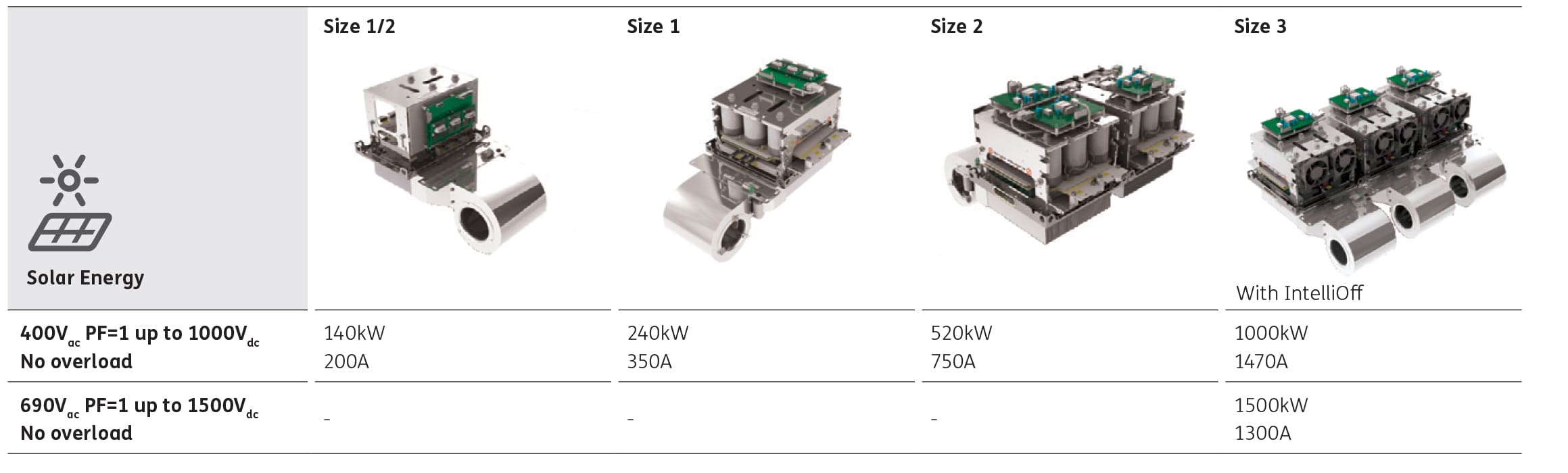

Solar PV inverters

SEMIKUBE at a glance

• 4 sizes
• Power assembly includes IGBTs, capacitor banks, drivers, current and temperature sensors

Pre-qualified platform

• Complies with environmental standards (IEC 60721-3)
• Automated electrical tests and 100% fully tested in production

Easy maintenance

• DC connection via fast-mount clamps
• Fast replacement time of 30mins
• Power assembly weighs less than 30kg

Key features

• 75kVA up to 1500kVA
• Power density up to 5.7kVA/litre
• Size 3 with new ASIC chipset
• Increased SOA with multi switch modes
• Drivers and current sensors
• Forced air cooled platform
• UL recognised
• Flexible design
