Innovative solutions to real-world challenges
More than 80% of failures in HV/MV assets are related to Partial Discharge (PD) activity
Source: 493-1997 – IEEE Recommended Practice for the Design of Reliable Industrial and Commercial Power Systems (Gold Book)
The PRY-CAM answer
RY-CAM’s breakthrough wireless technology allows online, accurate and reliable PD measurements, diagnosis and defect localisation.

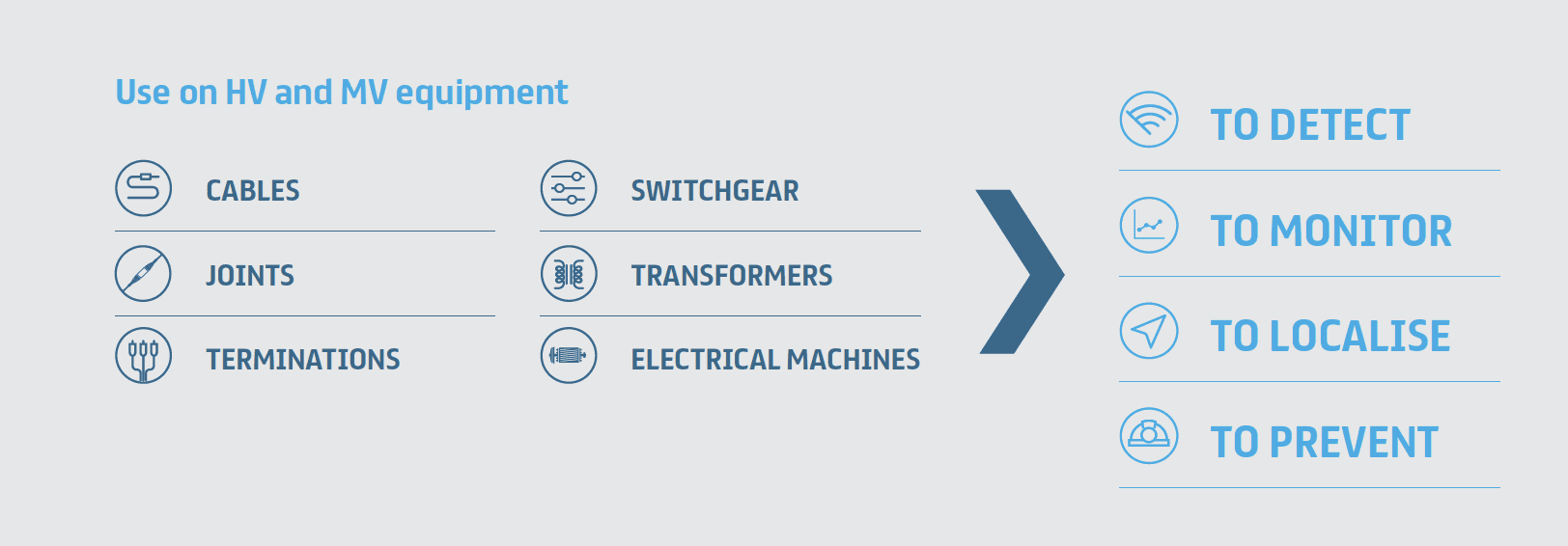

PRY-CAM allows PD testing to be performed online – i.e. without having to switch the system off – and without the need for a direct connection to what is being tested, which means also greater safety for operators.
PRY-CAM is faster, more data-driven and more effective than ever before, solving problems today and delivering learning for tomorrow.
For data-driven power
Technical specifications
- Sensor type: Electromagnetic sensor, based on a patented Ultra Wide Band (UWB) active capacitive probe
- Sampling frequency: 200 MS/s
- Bandwidth: 100 MHz
- PD sensitivity: 1 pC
- Synch frequency: From 10 Hz to 1 kHz
- Processing: Real-time filtering capabilities
- Communication interfaces: Wireless 802.11 b/g (WiFi)
- AC synchronization source: Electric field, magnetic field, light, auxiliary/external
- Internal battery: Li-Po 7.4 V, 2200 mAh Autonomy approx. 6 hours
- Working Temperature: From -25 °C to 70 °C
- Weight: 530 g
- Dimensions: 175 × 125 × 70 mm (L × W × H)

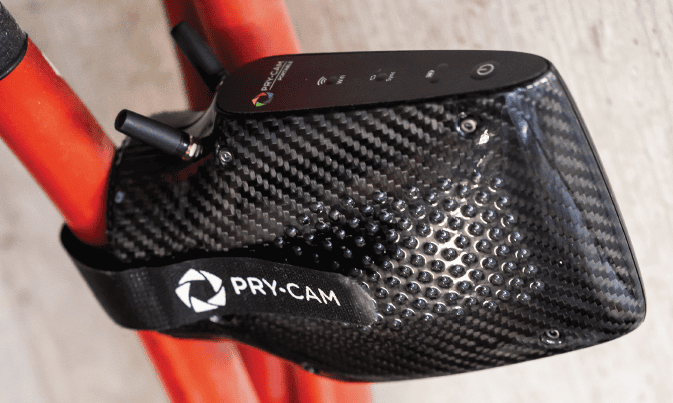

- Case: Carbon Fiber
