Introducing the BURNDY PATRIOT PAT750T3

OVERVIEW

Introducing the BURNDY® PATRIOT® PAT750T3 Series with all the exceptional features of its PATRIOT predecessor, plus a new ergonomic design and state of the art technology.

The TRACK TRACE TRANSMIT intelligence feature provides critical crimping information for all projects small and large. Data collected by the PAT750T3 provides users a new level of confidence that their BURNDY crimper is performing to specification and enhances the application of the BURNDY® Engineered System; an undeniable advantage over all competitive tools.

TRACK crimp locations with onboard GPS – BURNDY Exclusive!

TRACE individual crimps with comments and output force validation

TRANSMIT via Bluetooth® technology and sync to the cloud

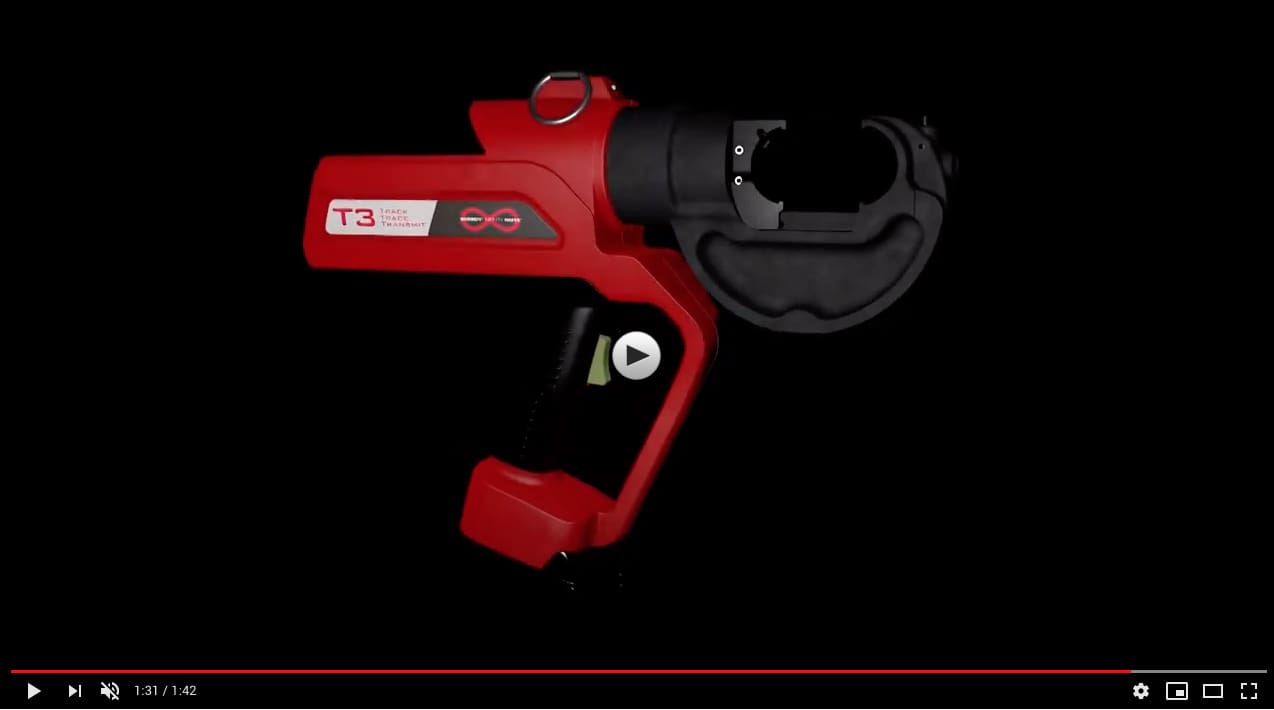

Video

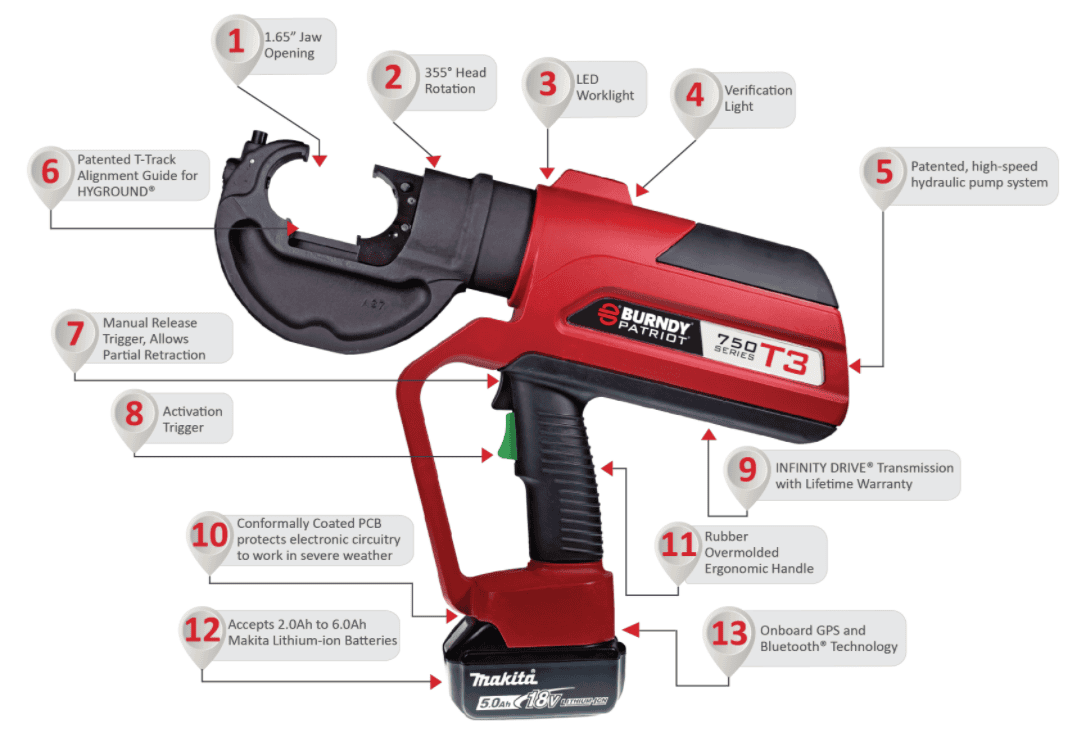

C-Head style for easy access and increased flexibility

1.65” Jaw opening

355° Head rotation

Improved ergonomic design with more balance

Enhanced grip to reduce user fatigue

Patented T-Track alignment guide for HYGROUND® as well as other asymmetrical connectors

Used with U-Dies

Robust and reliable INFINITY DRIVE® transmission

Patented, high-speed hydraulic pump system

Conformally Coated PCB protects electronic circuitry to work in severe weather

Accepts 2.0Ah-6.0Ah Makita batteries

Bright LED Worklight to illuminate work area

Red/Green LED to validate output force

Manual release trigger, allows partial retraction

Built-in trigger guard

Enhance hand grip area to prevent slippage

UL Listed Connections when used with the BURNDY® Engineered System

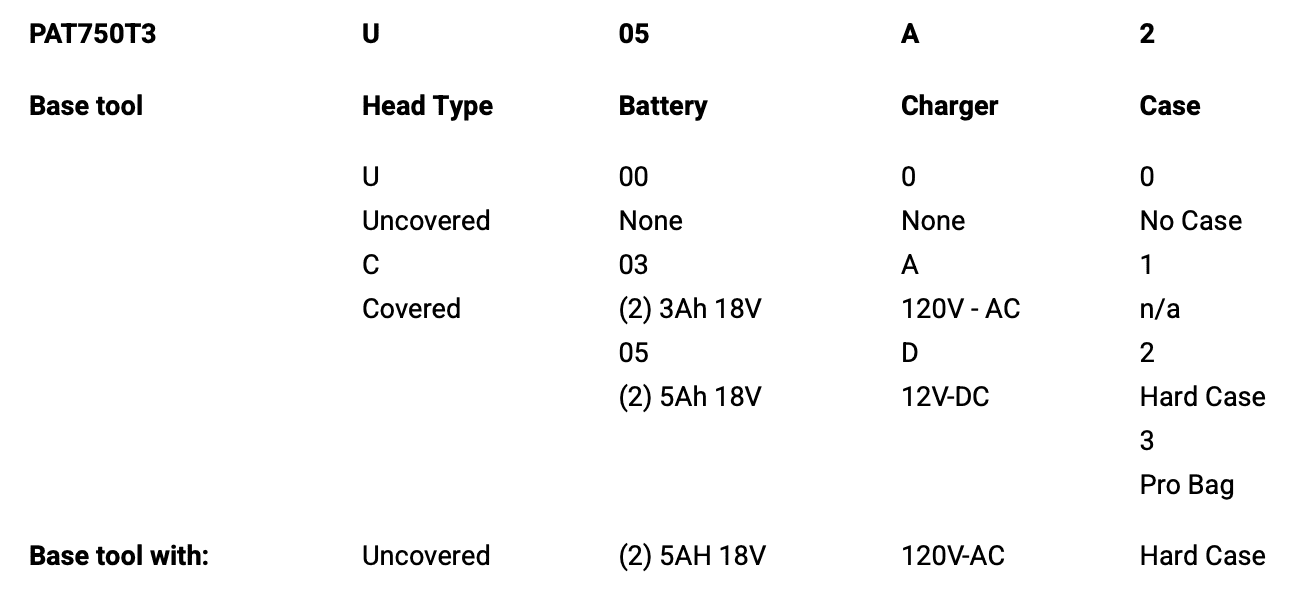

PRODUCT CONFIGURATIONS

• PAT750T3U03A2 PATRIOT® T3 12-Ton Battery Crimper, C-Head, Uncovered, (2) 3.0Ah 18V Li-Ion Batteries, 120V-AC Charger, Hard Case
• PAT750T3U03D2PATRIOT® T3 12-Ton Battery Crimper, C-Head, Uncovered, (2) 3.0Ah 18V Li-Ion Batteries, 12V-DC Charger, Hard Case
• PAT750T3C03A2 PATRIOT® T3 12-Ton Battery Crimper, C-Head, Rubber Covered, (2) 3.0Ah 18V Li-Ion Batteries, 120V-AC Charger, Hard Case
• PAT750T3C03D2 PATRIOT® T3 12-Ton Battery Crimper, C-Head, Rubber Covered, (2) 3.0Ah 18V Li-Ion Batteries, 12V-DC Charger, Hard Case
• PAT750T3U05A2 PATRIOT® T3 12-Ton Battery Crimper, C-Head, Uncovered, (2) 5.0Ah 18V Li-Ion Batteries, 120V-AC Charger, Hard Case
• PAT750T3U05D2 PATRIOT® T3 12-Ton Battery Crimper, C-Head, Uncovered, (2) 5.0Ah 18V Li-Ion Batteries, 12V-DC Charger, Hard Case
• PAT750T3C05A2 PATRIOT® T3 12-Ton Battery Crimper, C-Head, Rubber Covered, (2) 5.0Ah 18V Li-Ion Batteries, 120V-AC Charger, Hard Case
• PAT750T3C05D2 PATRIOT® T3 12-Ton Battery Crimper, C-Head, Rubber Covered, (2) 5.0Ah 18V Li-Ion Batteries, 12V-DC Charger, Hard Case
• PAT750T3U03A3 PATRIOT® T3 12-Ton Battery Crimper, C-Head, Uncovered, (2) 3.0Ah 18V Li-Ion Batteries, 120V-AC Charger, Nylon Pro Bag
• PAT750T3U03D3PATRIOT® T3 12-Ton Battery Crimper, C-Head, Uncovered, (2) 3.0Ah 18V Li-Ion Batteries, 12V-DC Charger, Nylon Pro Bag
• PAT750T3C03A3PATRIOT® T3 12-Ton Battery Crimper, C-Head, Rubber Covered, (2) 3.0Ah 18V Li-Ion Batteries, 120V-AC Charger, Nylon Pro Bag
• PAT750T3C03D3PATRIOT® T3 12-Ton Battery Crimper, C-Head, Rubber Covered, (2) 3.0Ah 18V Li-Ion Batteries, 12V-DC Charger, Nylon Pro Bag
• PAT750T3U05A3PATRIOT® T3 12-Ton Battery Crimper, C-Head, Uncovered, (2) 5.0Ah 18V Li-Ion Batteries, 120V-AC Charger, Nylon Pro Bag
• PAT750T3U05D3PATRIOT® T3 12-Ton Battery Crimper, C-Head, Uncovered, (2) 5.0Ah 18V Li-Ion Batteries, 12V-DC Charger, Nylon Pro Bag
• PAT750T3C05A3PATRIOT® T3 12-Ton Battery Crimper, C-Head, Rubber Covered, (2) 5.0Ah 18V Li-Ion Batteries, 120V-AC Charger, Nylon Pro Bag
• PAT750T3C05D3PATRIOT® T3 12-Ton Battery Crimper, C-Head, Rubber Covered, (2) 5.0Ah 18V Li-Ion Batteries, 12V-DC Charger, Nylon Pro Bag
• PAT750T3U0002PATRIOT® T3 12-Ton Battery Crimper, C-Head, Uncovered, No Batteries, No Charger, Hard Case
• PAT750T3C0002PATRIOT® T3 12-Ton Battery Crimper, C-Head, Rubber Covered, No Batteries, No Charger, Hard Case
• PAT750T3U0003PATRIOT® T3 12-Ton Battery Crimper, C-Head, Uncovered, No Batteries, No Charger, Nylon Pro Bag
• PAT750T3C0003PATRIOT® T3 12-Ton Battery Crimper, C-Head, Rubber Covered, >No Batteries, No Charger, Nylon Pro Bag
• PAT750T3U0000PATRIOT® T3 12-Ton Battery Crimper, C-Head, Uncovered, No Batteries, No Charger, No Case
• PAT750T3C0000PATRIOT® T3 12-Ton Battery Crimper, C-Head, Rubber Covered, No Batteries, No Charger, No Case

SPECIFICATIONS

• Output Force: 12 Tons
• Tool Weight: 16.1 lbs
• Size: 15.75” x 14.75” x 3.25”
• Die Style: U Style
• Operating Voltage: 18V-DC Lithium-Ion
• Recharge Time: 30 minutes (3.0Ah) / 45 minutes (5.0Ah)
• Warranty: 5 year limited warranty / Lifetime warranty on INFINITY DRIVE® / 3 year on batteries and charger

ACCESSORIES

• BAT18VLI: Hi-Capacity LI Makita battery (3.0Ah)
• BAT18V5AHLI: Hi-Capacity LI Makita battery (5.0Ah)
• PATCHGRLI: 120V-AC Makita charger
• PATCHGRLIDC: 12/24V-DC Makita charger
• FORCEGAUGE1215: Force Test Gauge
• PATPROBAG: Nylon Pro Bag for PATRIOT® tools
